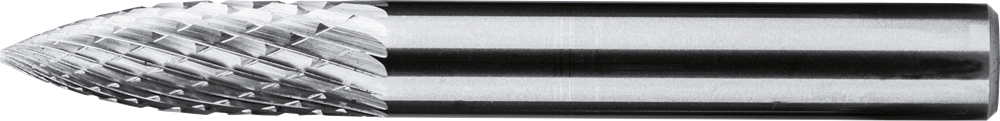

HM Stiftfrees model G, boomvorm spits
met stalen schacht
Eigenschappen
| Oppervlak | Blank geslepen |
| Schacht Ø (d2) | 6 mm |
| Artikelnummer | Diameter Ø (d1) | Afgeronde diameter (Ø) | Spiraallengte (l2) | Totaallengte (l1) | Tandvorm (z) |
|---|---|---|---|---|---|
| 631.486 | 6 mm | 6 mm | 18 mm | 50 mm | 6-UNI |
| 631.487 | 8 mm | 8 mm | 19 mm | 64 mm | 6-UNI |
| 631.533 | 9,5 mm | 10 mm | 19 mm | 64 mm | 1-ALU |
| 631.488 | 9,5 mm | 10 mm | 19 mm | 64 mm | 6-UNI |
| 631.523 | 9,5 mm | 10 mm | 19 mm | 64 mm | 8-STEEL |
| 631.543 | 9,5 mm | 10 mm | 19 mm | 64 mm | 9-INOX |
| 631.489 | 12,7 mm | 12 mm | 25 mm | 70 mm | 6-UNI |
