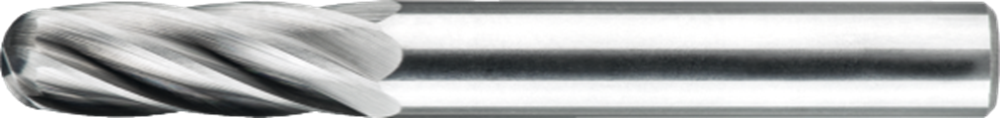

HM Stiftfrees model C, cilindrisch, ronde kop
cilindrisch, ronde kop
Eigenschappen
Oppervlak | Blank geslepen |
Schacht Ø (d2) | 6 mm |

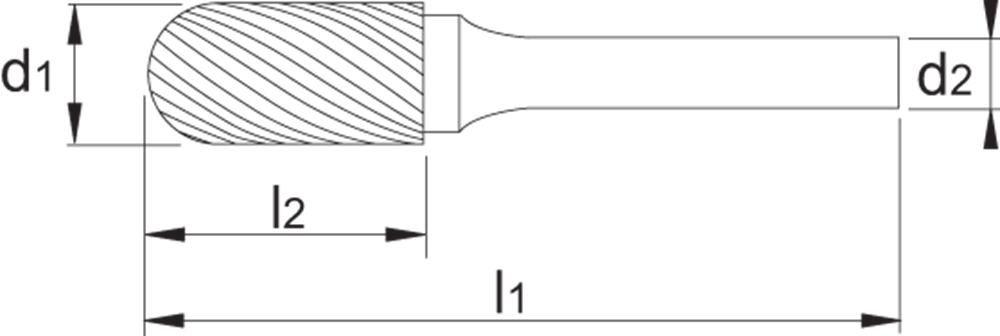

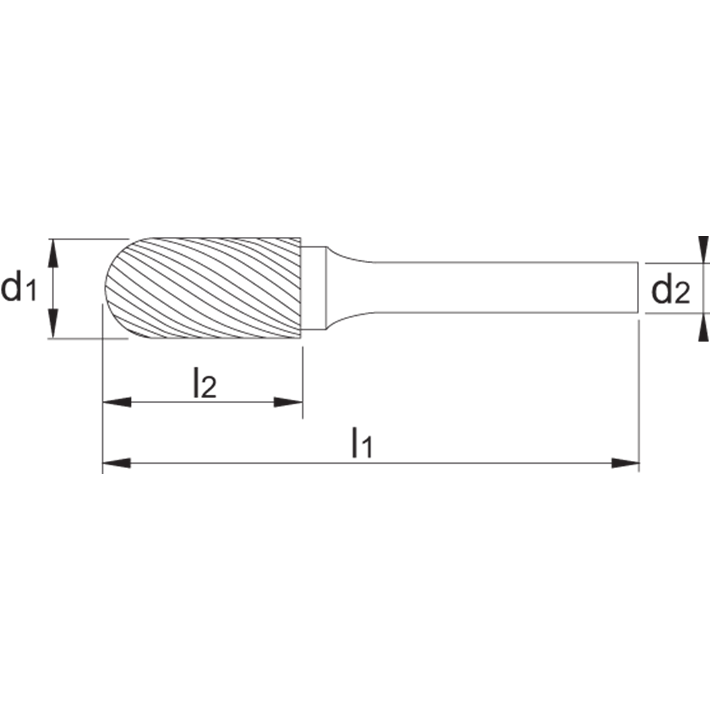

Artikelnummer | Diameter Ø (d1) | Afgeronde diameter (Ø) | Spiraallengte (l2) | Totaallengte (l1) | Tandvorm (z) |
---|---|---|---|---|---|
631.531 | 6 mm | 6 mm | 18 mm | 50 mm | 1-ALU |
631.481 | 6 mm | 6 mm | 18 mm | 50 mm | 6-UNI |
631.521 | 6 mm | 6 mm | 18 mm | 50 mm | 8-STEEL |
631.541 | 6 mm | 6 mm | 18 mm | 50 mm | 9-INOX |
631.482 | 8 mm | 8 mm | 19 mm | 64 mm | 6-UNI |
631.483 | 9,5 mm | 10 mm | 19 mm | 64 mm | 6-UNI |
631.484 | 12,7 mm | 12 mm | 25 mm | 70 mm | 6-UNI |
