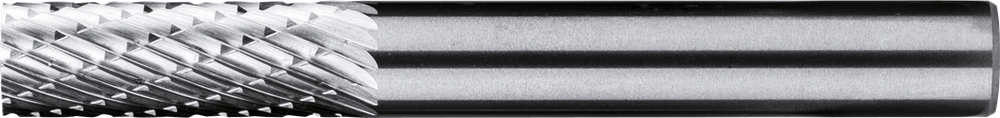

HM Stiftfrees model A, cilindrisch
cilindrisch model zonder kopvertanding
Eigenschappen
| Oppervlak | Blank geslepen |

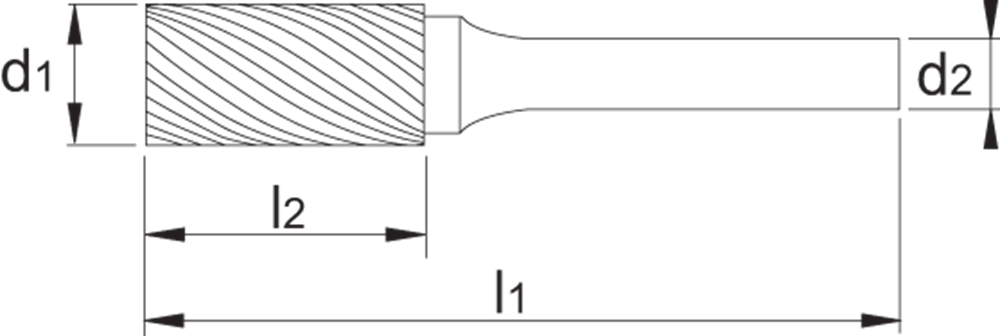

| Artikelnummer | Diameter Ø (d1) | Afgeronde diameter (Ø) | Schacht Ø (d2) | Spiraallengte (l2) | Totaallengte (l1) | Tandvorm (z) |
|---|---|---|---|---|---|---|
| 631.461 | 6 mm | 6 mm | 6 mm | 18 mm | 50 mm | 6-UNI |
| 631.462 | 8 mm | 8 mm | 6 mm | 19 mm | 64 mm | 6-UNI |
| 631.463 | 9,5 mm | 10 mm | 6 mm | 19 mm | 64 mm | 6-UNI |
| 631.530 | 12,7 mm | 12 mm | 6 mm | 25 mm | 70 mm | 1-ALU |
| 631.464 | 12,7 mm | 12 mm | 6 mm | 25 mm | 70 mm | 6-UNI |
| 631.520 | 12,7 mm | 12 mm | 6 mm | 25 mm | 70 mm | 8-STEEL |
| 631.540 | 12,7 mm | 12 mm | 6 mm | 25 mm | 70 mm | 9-INOX |
