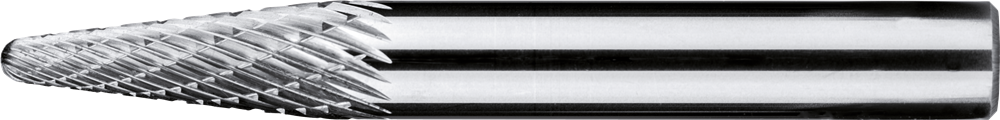

HM Stiftfrees model L, kegelvorm, met ronde kop
met stalen schacht
Eigenschappen
| Oppervlak | Blank geslepen |
| Schacht Ø (d2) | 6 mm |
| Artikelnummer | Diameter Ø (d1) | Afgeronde diameter (Ø) | Spiraallengte (l2) | Totaallengte (l1) | Tandvorm (z) |
|---|---|---|---|---|---|
| 631.491 | 6 mm | 6 mm | 16 mm | 50 mm | 6-UNI |
| 631.492 | 8 mm | 8 mm | 22 mm | 70 mm | 6-UNI |
| 631.493 | 9,5 mm | 10 mm | 27 mm | 74 mm | 6-UNI |
| 631.534 | 12,7 mm | 12 mm | 28 mm | 76 mm | 1-ALU |
| 631.494 | 12,7 mm | 12 mm | 28 mm | 76 mm | 6-UNI |
| 631.524 | 12,7 mm | 12 mm | 28 mm | 76 mm | 8-STEEL |
| 631.544 | 12,7 mm | 12 mm | 28 mm | 76 mm | 9-INOX |
